Watchdog Timer
Watchdog Circuit
Normal Operation
System Hung (Windows default)

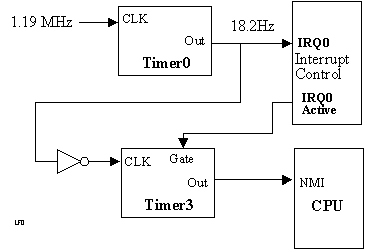

Watchdog Circuit
  The watchdog timer is used to detect a system problem, such as software in an endless loop (Ed. or Windows in it's normal state), with interrupts disabled. The watchdog works by checking that the system timer 0 is being serviced regularily. If the watchdog detects that IRQ0 is not being serviced quick enough (ie. lost timer ticks), the timer overflow initiates a Non-Maskable Interrupt (NMI).
   This timer only operates in Mode 0, and only has an 8 bit counter.



Normal Operation
   Each trigger of IRQ 0 will initiate the interrupt 8 timer service routine. At the completion of the timer service routine, the IRQ 0 line is cleared. This same line is fed to timer 3's gate. Since no clock occured from timer 0 while timer 3's gate was active, timer 3 remains in the same state.

System Hung (Windows Normal State)
  IRQ 0 is not serviced and the IRQ 0 active line remains high. The next clock from timer 0 output is allowed to clock timer 3 down. Once the pre-set count is exhausted, timer 3's output goes high, causing an NMI. The BIOS NMI service handler can then take appropriate action such as resetting the system. (Ed or maybe DEL C:|WINDOWS?)
  The output of timer 3 can be read from port 92h and examining bit 4.
