SMC/WD 3016

@6016.ADF - SMC3016/MC Ethernet Card

SMC aquired Western Digital's network cards. So a WD8003 corresponds to a Elite 16 8003.


 Legacy Driver location

WinNT 4.0 internal drivers exist for the SMC (WD) 8003E, 8003W, 8013EP, 8013WP



3016MC and 3016TP/MC Ethernet

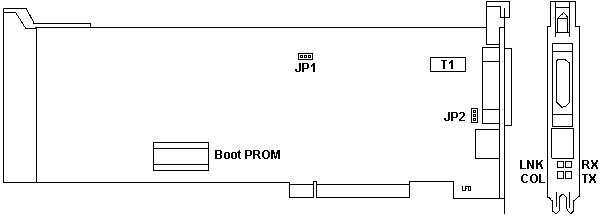

The 3016TP is illustrated. The 3016MC has a BNC connector in place of the RJ45 jack and it lacks the COL and LNK LEDs..

JP1 and T1 Cable select
JP2 Not installed

Selecting Cable Connector
   Jumper J1 and the pulse transformer T1 are used to select the cable type used

Board
Connector
Cable
J1
T1
3016TP/MC RJ45 Twisted Pair OUT IN
AUI Thick IN OUT
3016MC BNC Thin OUT IN
AUI Thick IN OUT

LEDs

TX
Transmit
RX
Receive
COL
Collision (3016TP only)
LNK
Link integrity (3016TP only)

3016.exe   3016 Driver and utility disk
3016MC-UGD.pdf   3016 Users Guide



AdapterID 06016 SMC3016/MC

I/O Address Range
   Selects a 32 byte IO address range for the SMC3016/MC registers
  <0300-031F>, 0340-035F, 0360-037F, 1980-199F, 2000-201F, 5680-569F, 5900-591F

Boot PROM Address Range
   Selects an 8K byte memory address range for the Boot PROM. If there is no PROM installed, or you want to disable its operation, then select <PROM not used>
 <PROM not used>, C200-C3FF, C400-C5FF, C600-C7FF, C800-C9FF, CA00-CBFF, CC00-CDFF, CE00-0CFF, D000-D1FF, D200-D3FF,  D400-D5FF, D600-D7FF, D800-D9FF, DA00-DBFF, DC00-DDFF, DE00-DFFF

Interrupt Level Selection
    <IRQ3>, 9 (2), 10, 11, 15, 5, 4, 12
These options are currently not supported
   IRQ14, test only, IRQ7, IRQ6
