4033 LAN Connection
4033V13.EXE 09-30-93  Latest OS/2 IBM 4033 software.  Supports Token Ring and EtherNet, OS/2 1.x and 2.x. Includes latest LPTX (use INSTALL program for proper installation)
NDSMIG.EXE  01/16/96  Latest NetWare Utilities for Windows. Supports Token Ring and Ethernet INA's (MarkNet/XL/XLs, and IBM 4033's (INA's are options in the 4039 and Lexmark Optra line of printers). This is version 1.04 of packaged file.
NPU_MVC.EXE    05-22-96  Supports MarkVision for IP, LAN Server and NT Server Windows clients. Supports Token Ring and Ethernet INAs (MarkNet /XL/XLe and IBM 4033's (INA's are options for the 4039 and Optra printers). This is version 4.18 of this packaged file.
NPU_ND.EXE   662539  05-22-96  Latest NetWare Utilities for DOS. Supports Token Ring and EtherNet INAs (MarkNet/XL/XLe and IBM 4033's (INA's are options in the 4039 and Optra line of printers). Package version 3.13.
NPU_NT.EXE   812039  09-05-97  Network Printer Utility v4.1 for Windows NT - INTEL PLATFORM. Supports Token Ring and EtherNet INAs (MarkNet/XL/XLe and IBM 4033's (INA's are options for the 4039 and Optra printers). Includes MarkVision server.
NPU_NW.EXE  1529561  12-09-97  Latest NetWare Utilities for Windows. Supports Token Ring and Ethernet INA's (MarkNet/XL/S), IBM 4033's, MarkNet XLe/Pro 1/Pro 3. (INA's are options for the 4039 and Optra printers). Version 5.42. IMPORTANT NOTICE for NetWare users: New NDS supporting firmware is available for MarkNet XL/XLe network adapters. We recommend these adapters be updated with the new firmware for use with this package. Obtain files INA_XL.EXE and /or ENA_XLE.EXE .
NPU_OS2.EXE 1273488  07-26-96  Latest OS/2 Utilities for LAN Server and LAN Manager. Supports Token Ring and Ethernet INAs (MarkNet/ XL), MarkNet XLe's and IBM 4033's (INA's are options for the 4039 and Optra printers).  Includes MarkVision server. Package version 5.16.
4033LJDR.EXE 249710  08-10-93  Updated LASERJET driver for use with the IBM4033 that corrects the GENERIC DRIVER DISK FULL error.
4033NOV.EXE    323120  08-10-93  VER 1.05 4033 Utility for 4033 Models 11,12,13 running on Novell Netware 2.2 and 3.11.


4033-001 System Board


CR1-CR4 Impedance matching network
J1 DB9 Port to TR
J2 Parallel Printer Port
J3 Serial Printer Port
J4 Header to "Control Panel"
J5 Header to external PS
L1-L2 bel A556-3001-00 inductor
U1 TI 1053101 CF62768BPJM
U2 OKI M80C88A-2
U4 Samsung KM62256BLG-10L
U5 PROM AM27C010
U6 NS NS16450V (UART for Serial Port?)
U7 Motorola MC145407DW
U8-U9 Sony CXK59288J-25
U19 50G6144ESD
U20-U21 NS 849 3328 (?)
U22 Motorola LS244
U28 1333510 BIOS Even (?)
U29 1333511 BIOS Odd (?)
Y1 32.000 MHz
Y2 3.072 (?)

Looking for more information! Talk to ME!



Operator Panel
Power Power LED
Print Print activity LED
16 / 4 Set to ring speed
Reset Re-enters ring.

POST Sequence, LAN Connected
  Power up the 4033 while it's connected to the LAN (or use the Reset Button). The following sequence should occur:
1. Power LED turns On solid.
2. The Status LED:
   a. Blinks several times in about 3 to 4 seconds.
   b. Turns Off (blank) for up to 30 seconds
   c. Turns On (solid).

If both LEDs are NOT on after the 4033 completes POST, or the above sequence is not completed, then go to Sympom Index After Post



J1 Pinout
1
CR1 Anode (Print)
2
CR1 Cathode (Print)
3
Reset Switch
4
SW1 16MB Position?
5
SW1 4MB Position?
6
SW1 Ground
7
Reset Switch
8
CR2 Cathode (Power)
9
CR2 Anode (Power)

J5 Pinout

1
+5v
2
Ground
3
Ground

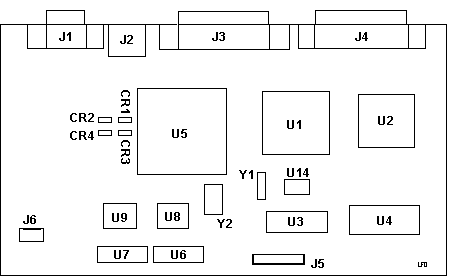

Lexmark MarkNet XLe 4033-201
CR1-4 Diodes
J1 DB9 STP port
J2 RJ-45 TP port
J3 Parallel 2
J4 Parallel 1
J5 Control panel header
J6 Power header
U1 LSI L1A9476
U2 N80C186-16
U3 OKI M514260BSL-70J
U4 AM29F400AB
U5 50G6144ESD
U6,7 Cypress CY7C188-35VC
U8,9 1333510/1333511 BIOS?
U14 IMI SG502AXB
Y1 39.900 MHz osc
Y2  32.0000 MHz osc

CR1-4 enable the XLe to automatically adjust to the impedance differences of STP and UTP cable.

50G6144ESD is also used in the 16/4 TR adapter.

Notice the beefy N80C186-16 cpu. More moxie than the SCSI w/cache N80C188.

Internal power supply
Skynet model PSS-0502
AC in- 115/0.3A, 230v/0.15A, 50/60Hz
DC Out - +5v/1.5A
Fuse is T1AH, 250V



    The IBM LAN Connection for Printers and Plotters provides a direct connection of parallel and EIA-232-C serial printers and plotters to local area networks (LANs).  The IBM LAN Connection for Printers and Plotters consists of a network printer adapter unit that attaches to a LAN and a software utility that resides on the LAN print server.  The adapter unit has both a serial and a parallel port that can be used simultaneously to support two printers or plotters.
       The software utility takes the print data normally sent to the print server's parallel ports and redirects it to either the parallel or serial port of the adapter.  The appropriate printer attached to the adapter receives the data and prints it just as if the printer were attached to the server's printer port.
       The IBM LAN Connection for Printers and Plotters software utility supports remote printing via an IBM OS/2 (R) Extended Edition (EE) and IBM OS/2 LAN Server for PS/2 (R) server or IBM AIX (R) Version 3.1.5 for RISC System/6000 (TM) (AIX/6000) server that is connected to either a token-ring (IEEE 802.5) or Ethernet LAN.
       The IBM LAN Connection for Printers and Plotters operates without noticeable degradation of printing performance and supports the following data streams: IBM Personal Printer Data Stream (PPDS), Hewlett-Packard Printer Control Language (HP PCL), IBM/HP Graphics Library (GL), and Adobe PostScript (1).  A user-friendly interface allows the user to easily configure and maintain one or more adapters on the network.
       The 4033 supports the following:
o   4033 Model 001 -- Token-Ring (4/16 megabits/second), IEEE 802.5
o   4033 Model 002 -- Ethernet 10BaseT, IEEE 802.3
o   4033 Model 003 -- Ethernet 10Base2 and 10Base5, IEEE 802.3

POWER SUPPLY

1333561 Used for -001 / -002
104V to 127V AC, 60Hz
5V DC +/- 5% at 1.5A

1333563 Used for -003 only (BNC Version of 4033)
90V to 265V AC, 50-60 Hz
5V DC +/- 5% (2.0A) 12V DC

LAN CABLING REQUIREMENTS
o   IBM 4033 Model 001, Token-Ring:
    -   IBM Token-Ring Network PC Adapter Cable (IBM part #6339098),  if the LAN segment uses IBM Cabling System data grade media and operates at a ring data rate of either 4 Mbps or 16 Mbps.
    -   Type 3 Media Filter Cable, if the LAN segment uses telephone twisted-pair media and operates at a ring data rate of 4 Mbps.
